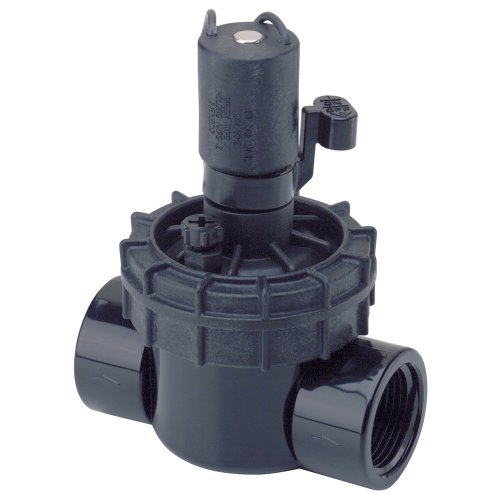

Toro 53708 1" Jar Top In-Line Valve Built to take the pressure, the Toro 1" (2.5 cm) In-Line Jar-Top Valve operates in the widest flow and pressure ranges from 0.25 to 30 GPM (.9 to 113.6 LPM) and 10 to 150 PSI (.7 to 10.3 BAR). These valves are typically installed below ground and are housed in a valve box keeping them securely out of sight. Toro 53708 1" Jar Top In-Line Valve Features: Threaded bonnet jar top system enables fast and easy servicing Spray-free internal as well as external bleed allow manual operation Jar-top design for fast no-tools access Rugged, double-beaded santoprene diaphragm provides leak-proof seal Manually activate at valve box, internal bleed eliminates flooding at valve location Spring and plunger enclosed in encapsulated solenoid Toro 53708 1" Jar Top In-Line Valve Specifications: Flow: 0.25 - 30.0 GPM Holding: 0.2 amps Inlet/Outlet: 1" (2.5 cm) Female NPT Inrush: 0.4 amps Operating Pressure: 10 - 150 PSI (.7 - 10.3 BAR) Solenoid: 24 V a.c.
With so many on offer these days, it is great to have a name you can trust. This item is certainly that and will be a perfect buy. The distributor have added some great touches and this equals great value.
You can trust this review, i hope you can try to buy this product and then you know this product good or no. Next time you can make a review for another people.
Good reliable valve
We have been using these to replace commercial valves installed originally by our irrigation contractor on a cycle basis as they wear out. These Toro valves (appear identical to me to the Irritrol model) I would consider high quality and none have failed in the 10 years I have been digging out the old valves and using these for replacements. Unfortunately some of them even have to sit frozen underwater in valve boxes with poor drainage all winter. Of course we have the system blown out internally every Fall. We have 14 valves in our installation so always keep several of these handy if the need arises. The jar top feature is terrific as most valve problems (solenoid, diaphram, etc) can be fixed by unscrewing the entire jar top assembly off in seconds and screwing on a new one and connecting the wires (just recycle the new body as usually it is not worth digging everything up and remaking the water connection unless there is a crack in the old body, this assumes you already have this...
Click here to read the full review for more information about this product.
Great valve for the price
We shopped the industrial catalogs for similar vavles. All were priced way too high for our little irrigation system. These valves are quiet and seal well. Do not leave them outside in the winter. Even with all the vents and drains open they retain a small bit of water in the solenoid. It freezes and ruins the solenoid. We have built a manifold using 6 valves. We lift the whole assembly off the house and bring it inside in the winter.
ANTENNA LAUNCHER
I USED THE TORO 53708 1 IN JAR TOP UNDERGROUND SYSTEM VALVE TO BUILD A ANTENNA LAUNCHER. THE VALVE WORKS BEAUTIFUL
Product Features :
- Manual internal/external bleed; encapsulated solenoid
- Popular "jar-top" system for fast and easy servicing
- For new or replacement installations
- Works with any other brand irrigation systems
Rating : 4.8
List Price : $19.99
